WDIT RPT-1500

Make Easy! For Improving The Weak Area Coverage

for Pagers application

Application

Hospitals
Nurse station
Rest-home
Restaurants
Club
Casino
Hotels
Emergency situations
Manufacturing
Convention center

The RPT-1500U Data Repeater is well designed in same/duplex frequency and low transmission power to improve the weak area's receiving.

This device is usually installed in the indoor/outdoor area, such as the building corner and basement etc. And the power source is provided by an AC adapter,

which needs to be plugged into a standard electrical outlet.

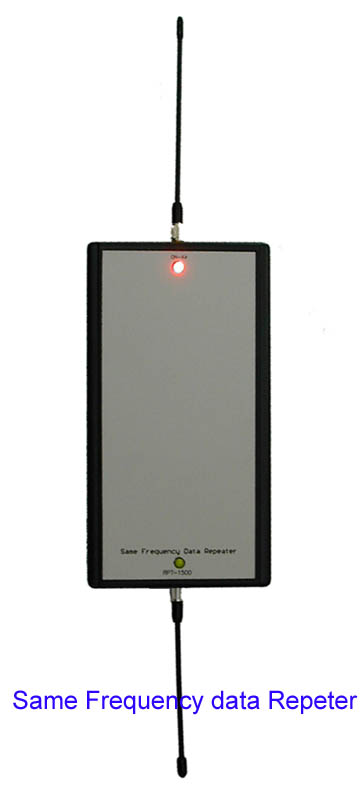

For the data repeating techniques, the RPT-1500 uses 2 antennas to handle all signals in and out. And the antenna located at the repeater bottom side is used to receive the signal from the portable transmitter. The other antenna on the top side is engaged to forward and transmit the received signal to the pagers etc.

The effective receiving distance from the portable transmitter to the repeater is about 250 feet. And the repeating distance coverage from the repeater to the pagers can reach up to 1 mile.

Model Number:	RPT-1500U
Receiver frequency:	410-490MHz.
Transmitter frequency:	410-490MHz.
Band width:	12.5/25KHz.
RF power output:	10mW ~ 5W(Max).
Modulation:	FSK,NRZ.
Transmitter Deviation:	4.5KHz.
Data format:	POCSAG or any 2 level H/L
Data rate:	from 300 to 6400bps.(512 -2400bps for pager)
Data storage:	Total 256K (32Kx8 block).
Delay time:	About 4 Sec.
RF output Jack::	RX: SMA Female, TX SMA Female, or BNC Female (for option).
Stability:	±10 ppm
Receiver sensitivity:	7uV at 1200bps
Operating Voltage:	DC12V with a AC100~240V 50/60Hz Switching Power Adapter
Operating Temperature:	-40˚C ~ + 70˚C
Power Consumption:	Standby 32mA, On Air 1.2A(Tx 5W)
Size:	189mm X 102mm X 42mm.
Weight:	350gm without AC adapter
