Wireless Smoke Alarm Paging

 M-911i Ceiling type

        Smoke and Fire Detector with wireless POCSAG Messages Transmitter.



Main Function

  • Battery 9V Operation Only.

  • Excellent stability and high sensitivity

  • Contain 90dB sound Buzzer

  • LED working status indicator

  • Simple installation

  • POCSAG format

  • Long battery life

  • Low battery warning

  • Long distance

  • Test button

　

Application

  • Hospitals
  • Hotels
  • Warehouse
  • Rest areas
  • Office
  • Shopping mall
  • Non Smoking area

Smoke and Fire detections

comply with the following

authorities:

  • UL
  • FHA
  • HUD
  • NFPA

　



　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

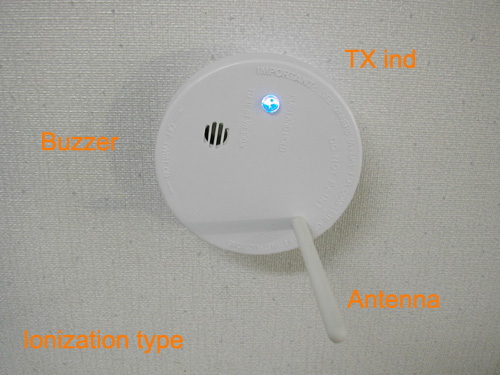

The M-911 Wireless Smoke Detector is specially designed to combine the regular alarm detector with

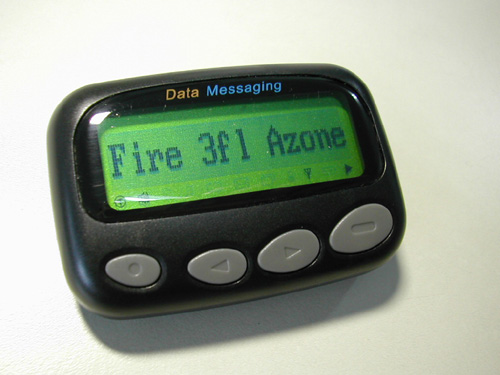

the Wireless POCSAG Message Transmitter. It is not only providing the loud 90dB warning sound but

also automatically paging the control center guard man while the fire alarm situations.

And the installation is simple without any wires connections and is useful for the home or building

security application usages.

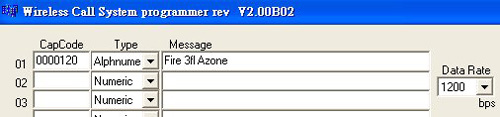

The M-911 pre-programmed numeric or alphanumeric messages in maximum 40 characters is

operated thru PC USB 1.1/2.0 port programming set-up .

By using the M-911, the existed alarm system can be moved into the wireless alarm paging era.

　

                                                        Specifications

　
Mode No.  M-911i
Detection: Ionization type.
Sensitivity: Meet UL 217 and UL 268
Temperature: -10˚C - 60˚C.
Paging format:  POCSAG
Frequency: 410~490MHz. 1 Channel Crystal controller.
Baud rate: 512bps / 1200bps / 2400bps.
Message: Numeric and Alphanumeric (Max 40 Character).
Message data: Numeric or Alphanumeric.
RF output 10~35 mW.
Modulation: FSK ,NRZ.
Deviation: 4.5Khz.
Stability: ±10 ppm.
Battery: 9V Alkaline battery.
Battery life about 1 Year.
Pre-programming: via P/C USB port by MS WIN O/S..
Size: 100mm X 35mm.
Housing Color:
White
Weight:

160gs (with battery).
                                                                             Notes:  Specifications are subject to change without notice
