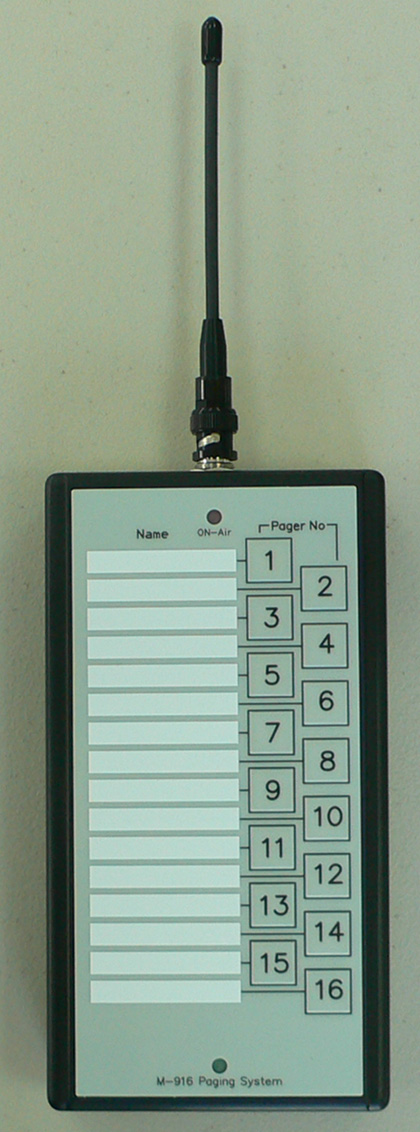

16 Key Paging System |
M-916X (Synthesized) |
|
Easy for calls by Pressing the Desired Button |
||
¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ |
The M-909X on-site paging system is designed to directly page the waiters, nurse, and staffs with a simple button
depressing. The system's individual call button feature can transmit messages to a single or group pager users.
While the paging is activated, the red LED located at the top of the button will be lighted on to confirm the
messages transmission is on the way.
Specifications of Encoder/Transmitter
| Frequency: | 410-490MHz |
| Frequency Oscillator type: | Frequency Synthesized. |
| Paging format: | POCSAG |
| Baud rate: | 512bps / 1200bps / 2400bps. |
| Message: | Numeric and Alphanumeric (Max 40 Character) |
| RF output power: | L type:0.1W-1W. H type:0.1W-4W. (7W max 410-490MHz only) |
| RF output Jack:: | 410-490MHz BNC Female. |
| Modulation: | FSK , |
| Deviation: | 4.5Khz |
| Stability: | ¡Ó10 ppm |
| Pager Capacity: | 16 Buttons. |
| Operating Voltage: | DC12V 1-2A with a AC100~240V 50/60Hz Switching Power Adapter |

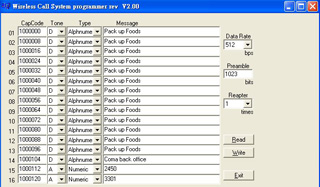

| Programming: | via USB with P/C |
| Power Consumption: | Standby 12mA, On Air 850mA (at 4 watts) |
| Size: | 189mm X 102mm X 42mm. |
| Weight: |
300gm without AC adapter |
|
Notes: Specifications are subject to change without notice |
